Full guide#

Curation is overseeing a model’s predictions: confirming the ones it got right and fixing the ones it got wrong. Ethograph makes curation faster by telling you where to look. Within single trials, you can see the model confidence per frame as a dotted line, showing you where the model is uncertain, or may expect false positives or false negatives. How confidence is computed differs for point and state events. For state events there is also a trial-level number, the mean of that curve, so you can skip curation on high-confidence trials.

Everything about curation lives in one place: the Curation section at the bottom of the Labels tab.

What curation means#

Every label carries a labeling_method — the vocabulary of ndx-ethogram:

Value	Meaning	Drawn as
`manual`	A human placed or last edited it	solid outline
`automated`	A model produced it and nobody has looked at it	dotted outline
`curated`	Automated output a human looked at and let stand	solid outline

Curation is the move automated → curated. It never touches a manual label (a human already vouched for it), and it never runs backwards: editing a label makes it manual, re-running a model over a trial can add new automated labels, and nothing else changes a method.

Besides the per-label method, the GUI tracks curation per trial: a trial is curated once none of its labels is still automated, and the verdict is written to the curated column (yes / no) of the session’s metadata.tsv, which appears the moment you start curating and is refreshed every few seconds while you work (see Trial metadata). You see it wherever you navigate — the trial number in the trials table and the Trial 12 (12/173) counter in the bottom bar are green for a curated trial and red for one with automated labels left, and predicting new labels into a curated trial turns it red again until those are curated too.

Three routines#

Which routine fits is decided by the kind of label and by what can be wrong with it. A state label can be wrong as a whole — the class, or an event that never happened — or only at its edges; a point event can only sit on the wrong moment. Trial by trial is for the first, segment review for the second, frame by frame for the third. Every routine can end after its bulk pass: Done in a grid curates what was seen, and a rough pass beats no pass.

1. State events, trial by trial#

        flowchart LR
    import[<b>Import predictions</b>] --> conf[<b>Confidence curves…</b><br/>one number per trial]
    conf --> table[<b>Trials table</b><br/>sort by confidence]
    table -->|"low"| walk[<b>Trial by trial</b><br/>Inspect is enough or Ctrl+C]
    table -->|"high"| bulk[<b>Bulk curate</b>]
    walk --> save[<b>Save</b><br/>Ctrl+S]
    bulk --> save
    click conf "confidence.html"
    click walk "modes.html"

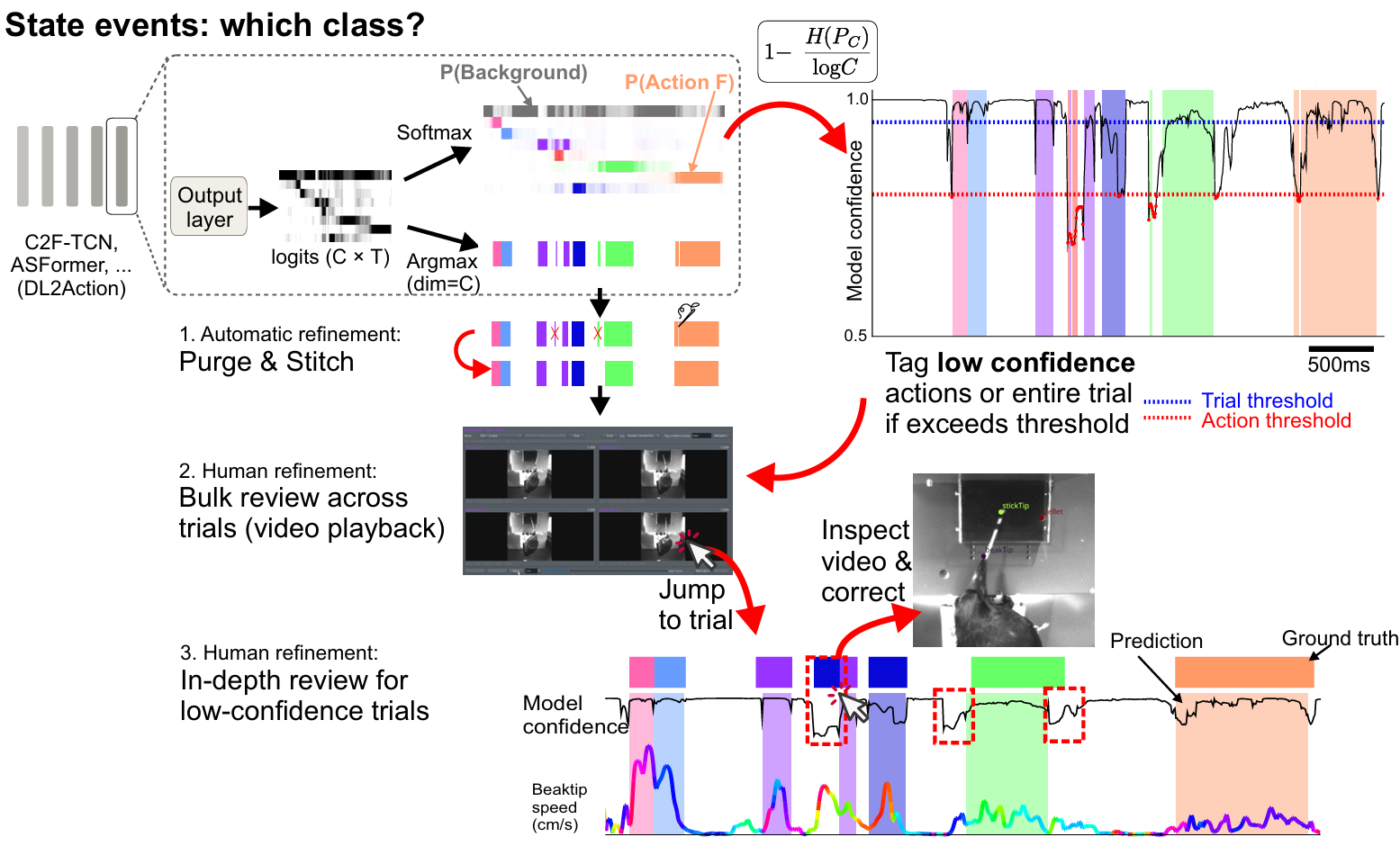

The segmentation model's per-frame softmax is turned into a confidence curve by normalised entropy; predictions are purged and stitched, then reviewed in bulk in the video grid, and the low-confidence trials inspected in depth. — The segmentation pipeline predicts a distribution over the classes at every frame. Its confidence curve is one minus the normalised entropy of that distribution: 1 where all the mass sits on one class, dropping wherever the model is torn between two. A segment’s own `confidence` is the mean of its class’s probability over its span.#

Confidence curves… beside the grid buttons gives every trial one number — the mean of its frame confidence curve, written to the metadata table as model_confidence — and a PDF of every trial’s curve with its labels. Sort the trials table by that column. Walk the low end trial by trial with Inspect is enough or Ctrl+C (Ways to curate), editing what is wrong, and curate the high end in bulk without opening it (Tools ▸ Labels: Bulk editing…). Where the cut goes is your call from the numbers in front of you, not a default. Should the pipeline’s purge and stitch thresholds turn out too loose or too tight, the Purge short labels and Stitch labels workflow steps redo them here.

2. State events, label by label#

        flowchart LR
    scope[<b>Scope</b><br/>drag the class in] --> grid{<b>Bulk review</b>}
    grid --> video[<b>Video grid</b><br/>clips of one class side by side]
    grid --> frames[<b>Label grid</b><br/>onset + offset frames, feature traces]
    video --> sort[<b>Sort by confidence</b><br/>lowest first]
    frames --> sort
    sort --> tag[<b>Tag for review</b><br/>below a threshold from the histogram,<br/>or by clicking]
    tag --> done[<b>Done</b><br/>everything untagged is curated]
    done --> seg[<b>Segment review</b><br/>each tagged label plays · click, click re-places it<br/>N curates · Backspace deletes]
    seg --> save[<b>Save</b><br/>Ctrl+S]
    done -.->|"short on time"| save
    click video "grids.html"
    click frames "grids.html"
    click seg "modes.html#segment-review"

Both grids show many instances of one class together, which is what makes an outlier visible: the video grid plays clips of similar length side by side, the label grid freezes every label as its onset frame, its offset frame and the selected feature traces between them. Sort by confidence, lowest first, so the labels the model doubted fill the first screens. Then tag what needs a closer look — every label below a threshold you set with the histogram in view (Flag confidence below, then Tag low-confidence), plus anything you click — and press Done: everything untagged is curated, the tagged stay automated. The tagged labels are the queue for segment review: each one plays, two clicks re-place its start and end, N curates what plays right and Backspace deletes what never happened. Short on time, stop after Done and save; the tagged labels wait, still dotted, for the next session.

3. Point events#

        flowchart LR
    scope[<b>Scope</b><br/>drag the class in] --> grid{<b>Bulk review</b>}
    grid --> video[<b>Video grid</b><br/>a red dot on the event's frame]
    grid --> frames[<b>Label grid</b><br/>the event's frame + its curve]
    video --> sort[<b>Sort by confidence</b><br/>lowest first]
    frames --> sort
    sort --> tag[<b>Tag for review</b><br/>below a threshold from the histogram,<br/>or by clicking]
    tag --> done[<b>Done</b><br/>everything untagged is curated]
    done --> ff[<b>Frame-by-frame review</b><br/>each tagged event · ← → step · Enter confirms<br/>N curates · Backspace deletes]
    ff --> save[<b>Save</b><br/>Ctrl+S]
    done -.->|"short on time"| save
    click video "grids.html"
    click frames "grids.html"
    click ff "modes.html#frame-by-frame-review"

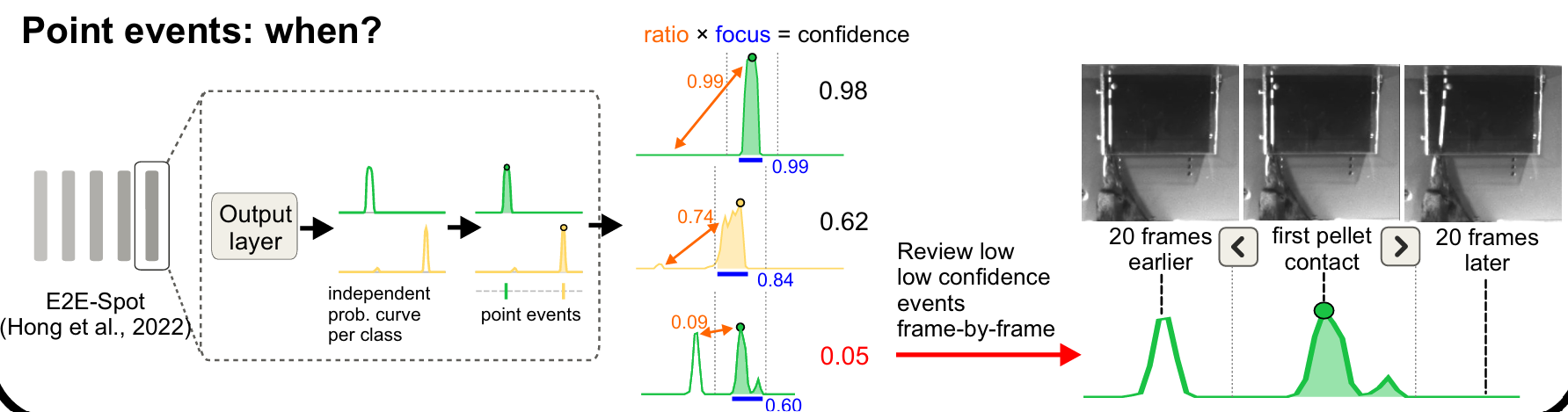

E2E-Spot's output layer gives one probability curve per class; the tallest peak is the point event, and its confidence is the curve's ratio times its focus; low-confidence events are reviewed frame by frame. — The LightGBM and E2E-Spot models produce one probability curve per class, and the point event sits on its tallest peak. The confidence is the **shape** of that curve: `ratio` (how much taller the peak is than its best rival) times `focus` (how much of the curve sits close to the peak). One clean bump reads near 1; a second candidate elsewhere in the trial, or a smeared bump, pulls it down.#

The bulk pass is the same as for state events, with the video grid playing a short window around each event and a red marker on its frame: sort lowest first, tag what is below your threshold or looks wrong, press Done. The tagged events are the queue for frame-by-frame review: each is centred in a short window with its curve drawn underneath, so a low score explains itself before you press a key — Enter confirms the frame on screen, ←/→ moves it, Backspace deletes an event that never happened.
