3. Detect — optional, if your animals wear tags

A click and a tag detector produce the same kind of thing: a position read off the pixels of one specific frame. EthoGraph calls both observations, and the fill interpolates between them — so any detector composes with any fill backend. Five clicked frames becoming several hundred detected ones is what stops optical flow drifting and gives PosePAL far more to fit to.

Through trial and error I settled on AprilTag tag36h11, which works very well on moving 5mm and 10mm wide tags.[1] Two smaller families are offered alongside it, and EthoGraph prints exactly what it can read — a sheet of tags the detector cannot decode would be a trap.

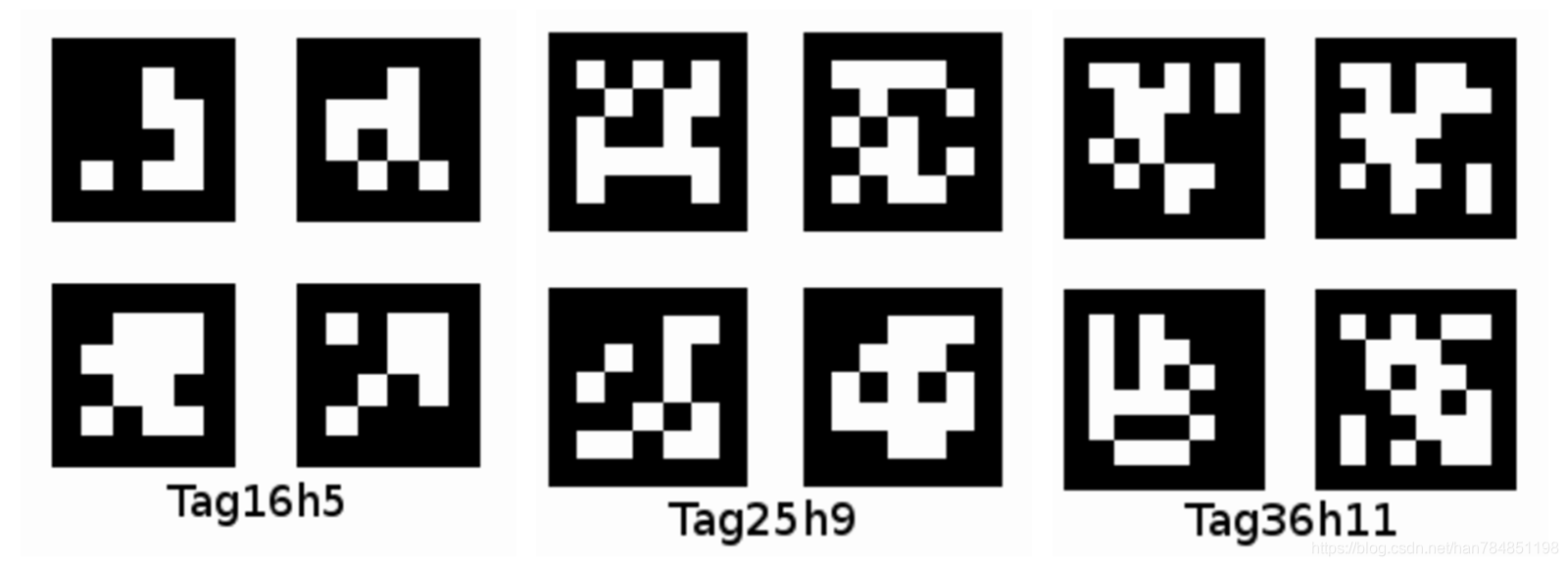

Three AprilTag families. The first number is how many data bits a tag carries (a 4×4, 5×5 or 6×6 grid of modules); the number after the h is the smallest Hamming distance between any two valid codes — how many bits have to be misread before one ID turns into another valid ID.

Family	Hamming	Grid	Data bits	Unique tags	Modules of paper
tag36h11 (default)	11	6×6	36	587	8
tag25h9	9	5×5	25	35	7
tag16h5	5	4×4	16	30	6

If your animal is very small and your pixel resolution limited, it may be helpful to take a family with a smaller grid tag16h5. On the other hand, if those are not limiting factor, then tag36h11 will give you an orders of magnitude lower false-positive rate and a few more distinguishable IDs.

Print the tags first

The sheet is made on the start page, under 🛠 Pre-recording tools ▸ Print tag sheet… — by the time you are tuning a detector the tags are already on the animals. It produces a print-ready vector PDF at a size given in millimetres.

A sheet is a table of rows, so one page can mix sizes and families — a handful of big tags and many small ones is the usual rig.

Family	First ID	Count	Tag mm	Min mm
tag36h11	0	24	4.0	4.2
tag16h5	0	6	4.0	3.1

• Tag mm is the printed tag itself, black border included — not the white margin around it, which is set for you.

• Min mm is a readout, not something you fill in. Give it your Camera resolution (seeded from the loaded video, and editable — the sheet is often for a rig that has not recorded yet) and the Scene width in view: how wide the frame is in millimetres at the animal’s distance. A tag under its minimum is flagged in red.

Printing — all four of these decide whether it works

• IMPORTANT: Do not crop the white border. It is not decoration. The detector finds a tag by its black border against a lighter surround, so the printed white margin is what lets the same tag work on dark fur or paint as well as on pale skin. Cut in the white, never on the black edge.

• Print at Actual size / 100% — never “fit to printable area” or “shrink oversized pages”. Every sheet carries a 50 mm rule: measure it with calipers, and if it does not read 50 mm, reprint rather than adjusting the size to compensate.

• Matte paper, laser, black cartridge only, toner-save and edge smoothing off. Gloss reflects the light source across the border, inkjet wicks, and composite black fringes every module edge.

• Glue to card so the tag stays flat. A curled tag is not a quad, and the detector has nothing to unwarp.

If a small size is important for your rig, measure it rather than trusting the readout: print one ID at 2.0, 2.5, 3.0, 4.0 and 5.0 mm, photograph the sheet under the rig’s own lighting, and adopt the smallest size that detects on every frame plus one step of margin.

Tuning

Family must match what you printed — e.g. a tag16h5 tag will never decode as tag36h11.

Downscale (quad_decimate) is how far the frame is shrunk before tags are looked for — the real speed-against-size trade. 2.0 runs several times faster and needs tags twice as big, which is why EthoGraph defaults it to 1.0 while the underlying library ships 2.0.

Sharpening (decode_sharpening, default 0.25) is applied to the sampled bit pattern before it is read. Raise it for motion-blurred or slightly out-of-focus tags.

Detect the four corners too emits each corner as its own keypoint, on top of the tag’s centre. It is for when you want the corner positions themselves — you do not need it for head direction. Orientation comes free with every decode, because a tag is a square: see head direction.

Quality threshold, on the Run panel, is the decode margin as a fraction of a good read. A real tag scores about 1.0 and spurious reads on noise score under 0.15, so the default of 0.3 sits in the gap between them. It is applied as results are stored, so retuning it costs nothing within a session.

Running it

Choose a range and press Run detector. The result joins your labels as observations; a detection never overwrites a label, and correcting one is just clicking it. Runs are cached next to the video as <video>.detections.npz, which is safe to delete.

Notes

---

[1]

Detection runs through pupil-apriltags, a maintained binding to the reference AprilTag 3 C library [Krogius et al., 2019]. OpenCV renders the printed tags, since pupil-apriltags has no generator.
